Description

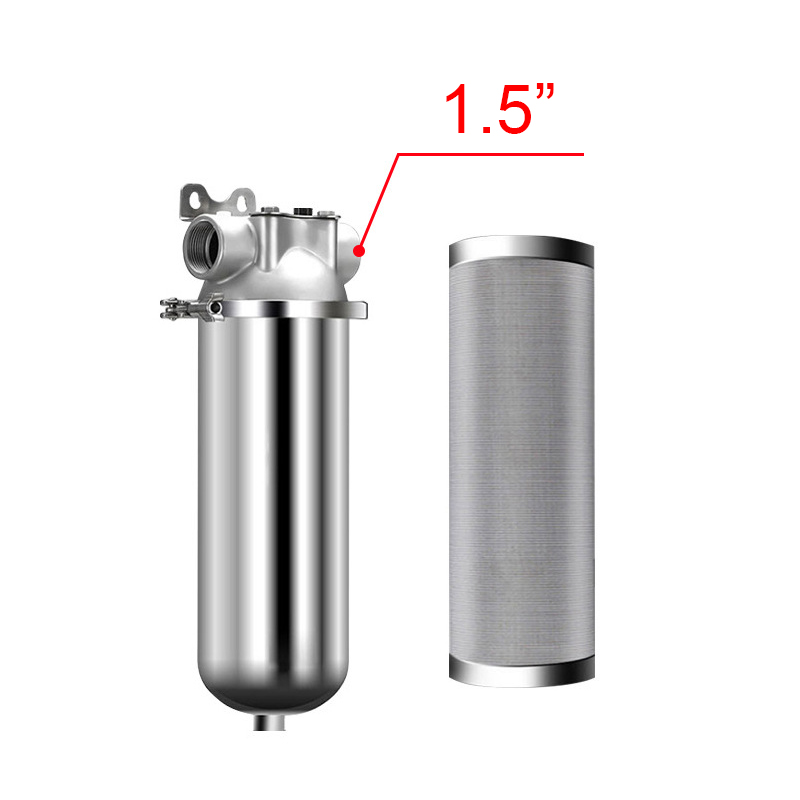

Custom Stainless Steel Pre-Filter with Pressure Gauge – 10″/20″ Big Blue Clamp-Type Whole House Water Purification System
Big blue water filter 20 inch whole house filter
household 10 inch Stainless steel water filter housing industrial use 40 microns SS filter cartridge water pre filter
Product Description
8000L/H 304 Stainless Steel Water Filter With 40 Microns Pre-Filtration System For Wholehouse
▶ High impact stainless steel mesh filter screen rated at 40 Micron, prevent dust, sand, plankton algae and other sediment go into
the appliance, avoid the injure. Protect the water device at the source.
▶ Flushable and reusable, takes considerable workload off finer filters that follow behind it, create a multi-layer gradient
filtration system for better filtration results and longer filter life.
▶ Food grade environmental stainless steel body and filtration mesh can server for more than 10 years.
▶ Ideal first layer of filtration before a larger filtration system
▶ Inlet and outlet : 1/2″ / 3/4″ / 1″ Threads
Specification
| Product size: | 90*190mm |
| Body material: | 304 Stainless steel |
| Filter material: | 304 Stainless Steel Mesh |
| Inlet / Outlet | Standard 1/2”, 3/4” and 1” Threads |
| Working pressure: | 0.1-0.6MPa |
| Applicable water temperature: | 5°C-45°C |
| Applicable water source: | municipal tap water |
| Applicable target: | whole-house water Pre-purification |
| Filtration Technology: | Stainless steel mesh |
| Filtration flow rate: | 8000L/H |
| Filter replacement: | 10 years |
| Filtration accuracy: | 40 μm |
| Installation location: | main water pipe after water metre |
